STP-CN04 | METCAL

Soldering tip, conical, (T x L) 0.4 x 8.6 mm, 330 °C, STP-CN04

Order No.: 03L5651
EAN: 4099891394189
MPN:
STP-CN04
Series: STP
METCAL

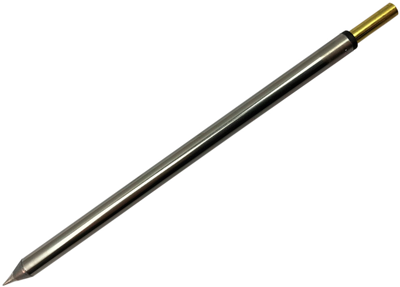

STP-CN04 METCAL Soldering tips, desoldering tips and hot air nozzles Image 1

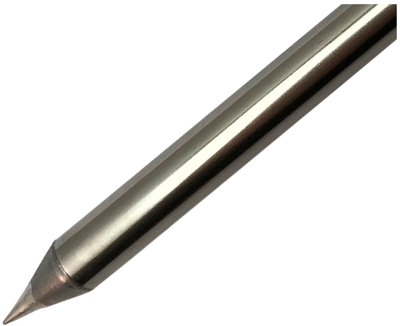

STP-CN04 METCAL Soldering tips, desoldering tips and hot air nozzles Image 2
Image may differ
Unit Price (€ / pc.)
18.445 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
18.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
18.445 €

Solder tip cartridges, STP-CN04, Metcal

SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems. The second letter in the part number designates the temperature series. The SFP temperature series are nominally 390 ˚C. Metcal recommends the SFP-series for most applications. However, Metcal offers a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications. STP-series are nominally 330 ˚C for light load application. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" adjusts power levels automatically based on the demand of the application.

Technical specifications
Version soldering tip
Thickness 0.4 mm
Suitable for MFR-1110, MFR-2210/11, MFR-1351, MFR-SRC, solder pen MFR-H1-SC /-SC2, MFR-HSR, solder-kit MFR-UK1
Length 8.6 mm
max. operating temperature 330 °C
Peak type conical
Logistics
Country of origin US
Customs tariff number 85151990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
