MD 9016 | METREL

Digital multimeter MD 9016, 8 A(DC), 8 A(AC), 1000 VDC, 1000 VAC, 60 nF to 3000 µF, CAT II 1000 V, CAT III 600 V

Order No.: 27K1284
EAN: 3831063419891
MPN:
MD 9016
20991942

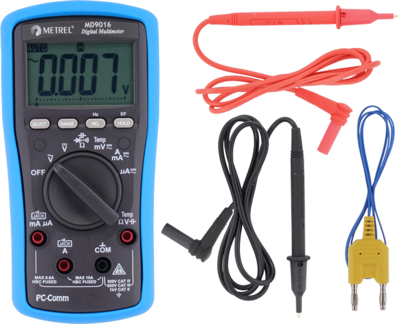

MD 9016 METREL Multimeters Image 1

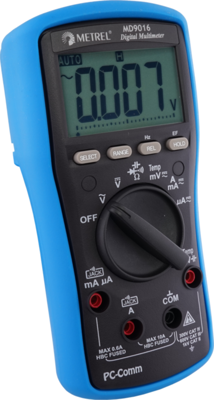

MD 9016 METREL Multimeters Image 2

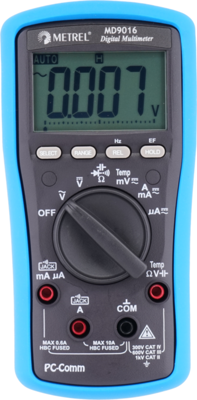

MD 9016 METREL Multimeters Image 3
Image may differ
Unit Price (€ / pc.)
142.80 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
142.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
142.80 €

Multimeter, MD 9016, Metrel

The MD 9016 digital multimeter is a perfect combination of size, innovative features and integrated PC communication. It is capable of detecting and diagnosing most electrical and electro-technical problems. The display with large, easy-to-read digits and one-hand operation make the MD 9016 an extremely user-friendly instrument. This compact instrument combines a high level of functionality with small size and portability.

Technical specifications
Display Digits 6000
Version Digital-Multimeter Set
TRMS possible No
Capacity range 60 nF bis 3000 µF
max. measured current value (AC) 8 A
max. measured current value (DC) 8 A
max. resistance range 60 MΩ
max. voltage measuring range (AC) 1000 V
max. voltage measuring range (DC) 1000 V
Surge voltage category CAT II 1000 V, CAT III 600 V
Logistics
Country of origin TW
Customs tariff number 90303100
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
