31373103 | METZ CONNECT

Pin header, 3 pole, pitch 2.5 mm, straight, green, 31373103

Order No.: 46F802
EAN: 4099889996883
MPN:
31373103
RIA
Series: PLUGCON
31373103 METZ CONNECT PCB Connection Systems Image 1
31373103 METZ CONNECT PCB Connection Systems Image 2
31373103 METZ CONNECT PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
2,082.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.4165 €

Pin headers, straight, 2.5 mm grid, type RIA PLUGCON 373.

With 0.8 mm solder pins (for 1.3 mm hole); Contacts: CuFe2P. Housing: PA 66 (UL 94 V-0). Color: green. Rated voltage (overvoltage category/ degree of soiling/ rated surge voltage): 80 V (III/3 / 0.8 kV), 320 V (III/ 2/ 4.0 kV), 320 V (II/ 2/ 2.5 kV). Rated voltage: cULus 150 V/SEV 130 V. Rated current: cULus 5.0 A/SEV 4.0 A. Operating temperatures: –30 to +105 °C. Insulation coordination to DIN EN 60664-1. Smallest air gap and creepage distance: min. 1.7 mm, insulating material class: CTI 600.

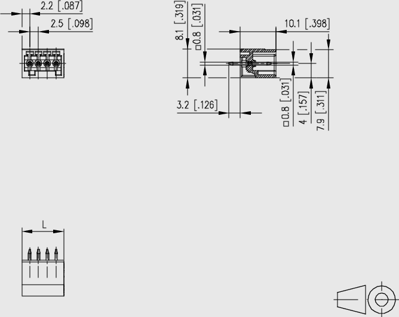

Technical attributes (type, number of poles, dimension L): 31373103, 3-pole, L 9.4 mm

Technical specifications
Anschluss Leiterplattenanschluss
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe grün
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 130 V
Nennstrom 5 A
Orientierung gerade
Polzahl 3-polig
Rastermaß 2.5 mm
Verriegelung Nein
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
