31374106 | METZ CONNECT

Pin header, 6 pole, pitch 5 mm, angled, green, 31374106

Order No.: 46F828
EAN: 4099889996920
MPN:
31374106
RIA
Series: PLUGCON
METZ CONNECT

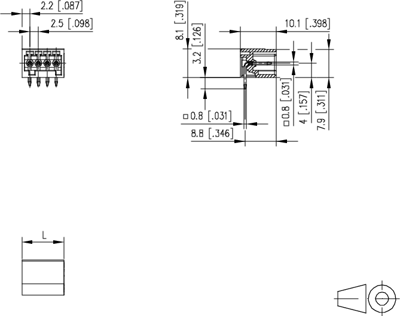

31374106 METZ CONNECT PCB Connection Systems Image 1

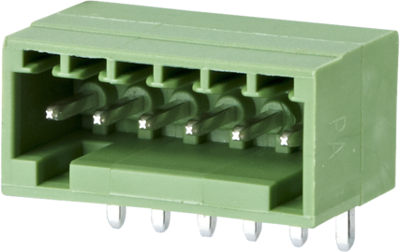

31374106 METZ CONNECT PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.8568 €

Pin headers, straight, 2.5 mm grid, type RIA PLUGCON 373.

With 0.8 mm solder pins (for 1.3 mm hole); Contacts: CuFe2P. Housing: PA 66 (UL 94 V-0). Color: green. Rated voltage (overvoltage category/ degree of soiling/ rated surge voltage): 80 V (III/3 / 0.8 kV), 320 V (III/ 2/ 4.0 kV), 320 V (II/ 2/ 2.5 kV). Rated voltage: cULus 150 V/SEV 130 V. Rated current: cULus 5.0 A/SEV 4.0 A. Operating temperatures: –30 to +105 °C. Insulation coordination to DIN EN 60664-1. Smallest air gap and creepage distance: min. 1.7 mm, insulating material class: CTI 600.

Pin headers, angled, 2.5 mm grid, type PLUGCON 374.

Technical attributes (type, number of poles, dimension L): 31374106, 6–pole, L 16.9 mm

Technical specifications
Connection PCB connection
Number of rows 1
Version pin header
Additional parts equipped
Breakable No
Colour green
Contact type pin
contact surface tin-plated
Rated voltage 130 V
Rated current 5 A
Orientation angled
Pin number 6 pole
Grid 5 mm
Type of locking No
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
