31157103 | METZ CONNECT

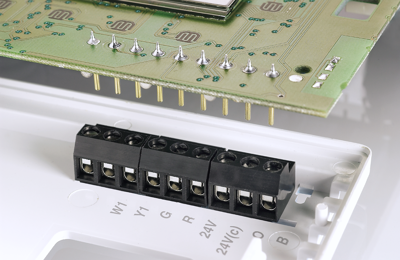

PCB terminal, 3 pole, pitch 5 mm, AWG 28-14, 10 A, screw connection, black, 31157103

Order No.: 09H6362
EAN: 4099891039134
MPN:
31157103
RIA
Series: RIACON
31157103 METZ CONNECT PCB Terminal Blocks
Image may differ
Unit Price (€ / pc.)
0.8449 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
422.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
0.8449 €

PCB terminal, 31157103, METZ

It is suitable for solid wires and multi-stranded wires with a nominal cross section of 0.08 - 2.5 mm² and permits direct clamping without preconditioning of the conductor, direct clamping with splice protection and indirect clamping via an end sleeve or pin cable lug.

Features

  • Screw type terminal block, pluggable
  • With wire protector
  • Degree of protection: IP20
Technical specifications
Anschluss Schraubanschluss
AWG-Leiterquerschnitt AWG 28-14
Breite 15 mm
Farbe schwarz
Leiterquerschnitt 0,08-2,5 mm²
Nennspannung 320 V
Nennstrom 10 A
Polzahl 3-polig
Rastermaß 5 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
