31157106 | METZ CONNECT
PCB terminal, 6 pole, pitch 5 mm, AWG 28-14, 10 A, screw connection, black, 31157106
Unit Price (€ / pc.)
1.5351 € *
Available: 0 pcs.
Leadtime: On Request **

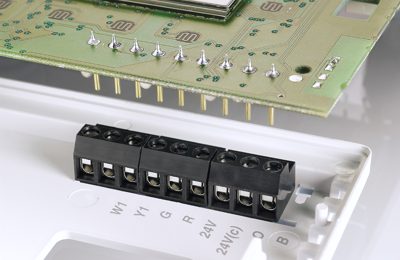

PCB terminal, 31157106, METZ
It is suitable for solid wires and multi-stranded wires with a nominal cross section of 0.08 - 2.5 mm² and permits direct clamping without preconditioning of the conductor, direct clamping with splice protection and indirect clamping via an end sleeve or pin cable lug.
Features
- Screw type terminal block, pluggable
- With wire protector
- Degree of protection: IP20
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 28-14 | |
| Width | 30 mm | |
| Colour | black | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 10 A | |
| Pin number | 6 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
