AST0270204 | METZ CONNECT

PCB terminal, 2 pole, pitch 7.5 mm, AWG 28-14, 12 A, spring-clamp connection, gray, AST0270204

Order No.: 09H6110
EAN: 4099891038984
MPN:
AST0270204
RIA
Series: SPRINGCON
METZ CONNECT

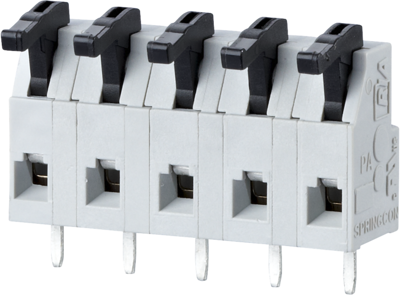

AST0270204 METZ CONNECT PCB Terminal Blocks Image 1
AST0270204 METZ CONNECT PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.9639 € *
Available: 379 pcs.
Leadtime: 4 Weeks **
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9639 €
100 pcs.
0.8330 €
250 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, AST0270204, METZ

It is suitable for solid wires and multi-stranded wires with a nominal cross section of 0.08 - 2.5 mm² and permits direct clamping without preconditioning of the conductor, direct clamping with splice protection and indirect clamping via an end sleeve or pin cable lug.

Features

  • Spring clamp terminal block, solderable
  • Direction of connection 90°
  • Fittable without loss of poles
  • Degree of protection: IP20
Technical specifications
Anschluss Federklemmanschluss
AWG-Leiterquerschnitt AWG 28-14
Farbe grau
Leiterquerschnitt 0,08-1,0 mm²
Nennspannung 400 V
Nennstrom 12 A
Polzahl 2-polig
Rastermaß 7.5 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
