RV-3049-C2-TA-025 OPT. B | Micro Crystal

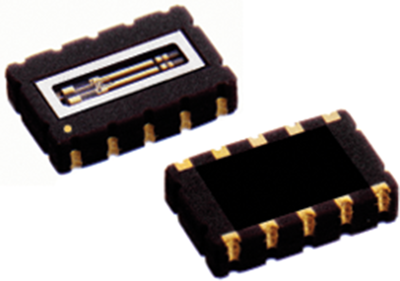

Real Time Clock, SON-10, RV-3049-C2-TA-025 OPT. B
Order No.: 78D552
EAN: 4099879146311
MPN:
RV-3049-C2-TA-025 OPT. B
Unit Price (€ / pc.)
3.3558 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
RTC modules with SPI bus, type Micro Crystal RV-3049-C2.
With integrated temperature sensor; frequency tolerance: ±20 ppm at +25 °C. Frequency (programmable): 32.768/1024/32/1.0 Hz. Supply voltage: max. 5.5 V. Timer precision: at +25 °C ±0.26 s/day, at –40 to +85 °C ±2.17 s/day. Functions: battery backup, calendar, trickle-charge circuit. Operating temperatures: –40 to +85 °C. Aging: ±3.0 ppm/year. Dimensions: 5.0 x 3.2 x 1.2 mm.
Type: RV-3049-C2 optional B, RTC module
Technical specifications
| Ausführung | SPI-Bus | |
| Eingangsspannung | 5.5 V | |
| Gehäuse | SON-10 | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD |
Download
Logistics
| Ursprungsland | CH |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
