TC4420CPA | Microchip

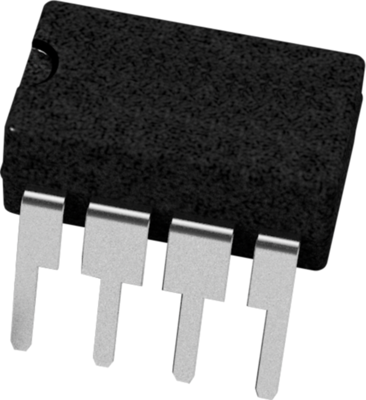

High-speed MOSFET driver, PDIP-8, Microchip TC4420CPA
Unit Price (€ / pc.)
1.9278 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
MOSFET driver, TC4420CPA, ATMEL
The TC4420CPA is a 6 A , single-output MOSFET driver. This device is virtually latch-up proof, it replaces three or more discrete components, saving PCB area, parts and improving overall system reliability.
Features
- Latch-up protected
- ESD protected
- Short delay times
- High capacitive load drive
Applications
- Motor controls
- Pulse transformer driver
- Class D switching amplifiers
Technical specifications
| Anzahl der Kanäle | 1 | |
| Ausführung | Niedrige Seite | |
| Ausgangsspannungsbereich | 4,5-18 V | |
| Eingangsspannung | 2.4 V | |
| Gehäuse | PDIP-8 | |
| Montage | THT |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85423390 |
| Originalverpackung | Stange mit 60 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
