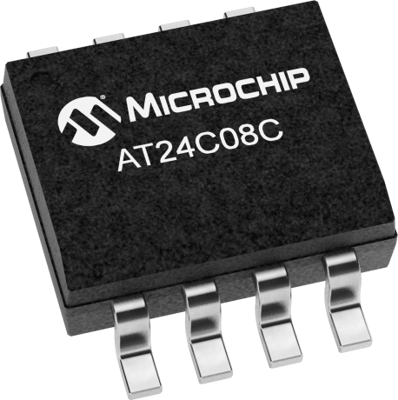

AT24C08C-SSHM-T | Microchip
EEPROM 8 kbit, SOIC-8, AT24C08C-SSHM-T
Unit Price (€ / pc.)
0.2285 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
EEPROM, AT24C08C-SSHM-T, ATMEL
The AT24C08C-SSHM-T provides 4,096/8,192 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 512/1024 words of 8 bits each. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Features
- Schmitt trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- Write protect pin for hardware data protection
- High-reliability
Technical specifications
| Enclosure | SOIC-8 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 1.7-5.5 V | |
| Memory size | 8 kbit | |
| Clock frequency | 1 MHz | |
| Technology | EEPROM | |
| Access time | 550 s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85423275 |
| MSL | MSL 3 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
