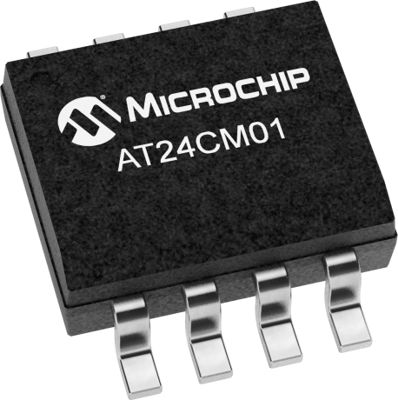

AT24CM01-SSHM-T | Microchip
EEPROM 1 Mbit, SOIC-8, AT24CM01-SSHM-T
Unit Price (€ / pc.)
1.2376 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
EEPROM, AT24CM01-SSHM-T, ATMEL
The AT24CM01-SSHM-T provides 1,048,576 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 131,072 words of eight bits each. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential.
Features
- Schmitt trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- Write protect pin for hardware data protection
- High-reliability
Technical specifications
| Gehäuse | SOIC-8 | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Spannung | 1,7-5,5 V | |
| Speichergröße | 1 Mbit | |
| Taktfrequenz | 1 MHz | |
| Technologie | EEPROM | |
| Zugriffszeit | 550 s |
Download
Logistics
| Zolltarifnummer | 85423261 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 4.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
