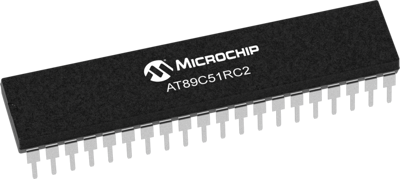

AT89C51RC2-3CSUM | Microchip

80C51 microcontroller, 8 bit, 60 MHz, PDIP-40, AT89C51RC2-3CSUM

Order No.: 64S2818
EAN: 4099879131829
MPN:
AT89C51RC2-3CSUM
Series: AT89C51RC
Microchip
AT89C51RC2-3CSUM Microchip Microcontrollers
Image may differ
Unit Price (€ / pc.)
11.9714 € *
Available: 0 pcs.
Available in 5 Days: 135 pcs.
Leadtime: 4 Weeks **
Total Price:
11.97 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5 pcs.
11.9714 €

Microcontroller, AT89C51RC2-3CSUM, ATMEL

The AT89C51RC2-3CSUM is a high-performance flash 8-bit microcontroller. The Flash memory can be programmed either in parallel mode or in serial mode with the ISP capability or with software.

Features

  • Integrated power monitor
  • High-speed architecture
  • Dual data pointer
  • SPI interface
  • Hardware watchdog timer
Technical specifications
Number of I/Os 32
Number of pins 40
Version Flash
Enclosure PDIP-40
Core Size 8 bit
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly THT
Processor core 80C51
Data RAM Size 1.25 KB
Voltage 2.7-5.5 V
Memory size 32 KB
Clock frequency 60 MHz
Logistics
Customs tariff number 85423190
MSL MSL 3
Original Packaging Bar with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
