AT90CAN32-16AU | Microchip

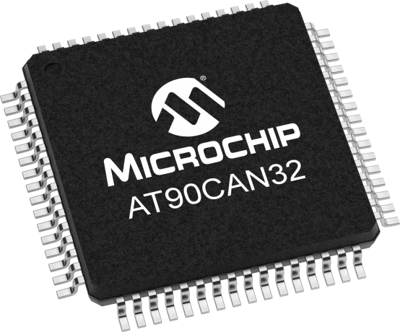

AVR microcontroller, 8 bit, 16 MHz, TQFP-64, AT90CAN32-16AU
Unit Price (€ / pc.)
8.2348 € *
Available: 0 pcs.
Available in 5 Days: 955 pcs.
Leadtime: 4 Weeks **
CMOS 8-bit microcontroller, AT90CAN32-16AU, ATMEL
The AT90CAN32-16AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, it achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Features
- Advanced RISC architecture
- Non-volatile program and data memories
- Programmable watchdog timer with on-chip oscillator
- On-chip analog comparator
- Power-on reset and programmable Brown-out detection
Technical specifications
| Number of I/Os | 53 | |
| Number of pins | 64 | |
| Version | Flash | |
| Enclosure | TQFP-64 | |
| Core Size | 8 bit | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Processor core | AVR | |
| Data RAM Size | 2 KB | |
| Voltage | 2.7-5.5 V | |
| Memory size | 32 KB | |
| Clock frequency | 16 MHz |
Download
Logistics
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Tray with 90 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
