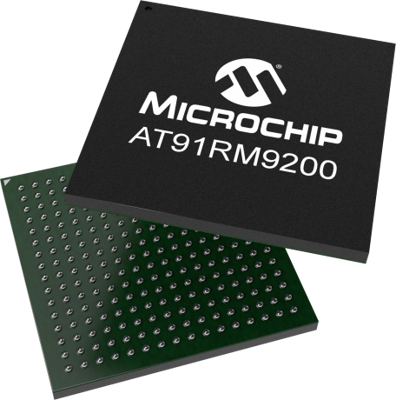

AT91RM9200-CJ-002 | Microchip
ARM920T microcontroller, 16/32 bit, 180 MHz, LFBGA-256, AT91RM9200-CJ-002
Unit Price (€ / pc.)
70.5432 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
70.54 € *
Price list
Quantity
Price per unit*
1 pcs.
70.5432 €
5 pcs.
65.3072 €
10 pcs.
61.6182 €
25 pcs.
58.1315 €
50 pcs.
55.3588 €
*incl. VAT plus shipping costs
**Subject to prior sale
ARM microcontroller, AT91RM9200-CJ-002, ATMEL
The AT91RM9200-CJ-002 is a complete system-on-chip built around the processor. It incorporates a rich set of system and application peripherals and standard interfaces in order to provide a single-chip solution for a wide range of compute-intensive applications that require maximum functionality at minimum power consumption at lowest cost.
Features
- Low power
- Additional embedded memories
- External bus interface
- Real-time clock with alarm interrupt
- System timer including periodic interrupt, watchdog and second counter
Technical specifications
| Number of I/Os | 122 | |
| Number of pins | 256 | |
| Version | ROM | |
| Enclosure | LFBGA-256 | |
| Core Size | 16/32 bit | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Processor core | ARM920T | |
| Data RAM Size | 48 KB | |
| Voltage | 1.65-1.95 V | |
| Memory size | 128 KB | |
| Clock frequency | 180 MHz |
Download
Logistics
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Tray with 126 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
