PIC12F683-I/SN | Microchip

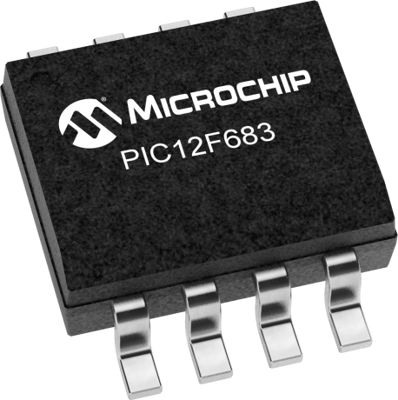

PIC microcontroller, 8 bit, 20 MHz, SOIC-8, PIC12F683-I/SN
Unit Price (€ / pc.)
2.1658 € *
Available: 0 pcs.
Available in 5 Days: 1,660 pcs.
Leadtime: 5 Weeks **
Total Price:
2.17 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1658 €
50 pcs.
2.0468 €
100 pcs.
1.9278 €
250 pcs.
1.8326 €
*incl. VAT plus shipping costs
**Subject to prior sale
CMOS 8-bit microcontroller, PIC12F683-I/SN, ATMEL
The PIC12F683-I/SN is a CMOS flash-based 8-bit microcontroller with nanoWatt technology. It employs a RISC architecture with only 35 single word/single cycle instructions.
Features
- Precision internal oscillator
- Power-on reset
- Power-up timer
- Programmable code protection
- Enhanced low-current watchdog timer
- Power saving SLEEP mode
Technical specifications
| Number of I/Os | 6 | |
| Number of pins | 8 | |
| Version | Flash | |
| Enclosure | SOIC-8 | |
| Core Size | 8 bit | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Processor core | PIC | |
| Data RAM Size | 128 byte | |
| Voltage | 2-5.5 V | |
| Memory size | 3.5 KB | |
| Clock frequency | 20 MHz |
Download
Logistics
| Country of origin | HK |
| Customs tariff number | 85423190 |
| MSL | MSL 1 |
| Original Packaging | Bar with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
