STS1 1000 3 D L360 500 U129 | Microtherm
Temperature sensor STS1
Unit Price (€ / pc.)
6.5569 € *
Available: 324 pcs.
Leadtime: On Request **
Total Price:
6.56 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5569 €
10 pcs.
5.7715 €
100 pcs.
5.0694 €
250 pcs.
4.8671 €
1000 pcs.
4.5577 €
*incl. VAT plus shipping costs
**Subject to prior sale

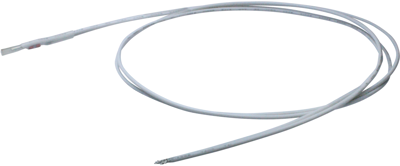

Temperature sensor, STS1 1000 3 D L360 500 U129, Microtherm
Sensors of the STS type series are characterised by a temperature profile very similar to the KTY sensors and are an alternative solution. The STS1 is regarded as an alternative to the KTY84-130 and is available as standard in shrink sleeve or dimensionally stable PPS housing package.
Replacement for temperature sensor KTY 84 Typ.resistance at 100°C: 1000 Ohm, min. operating temperature -40°C, max. operating temperature: +170°C, min. insulation resistance: 100 MOhm, rated current: 1 mA, max. rated power: 10 mW, tolerance: ± 3 %, wire: AWG24, colour: white, material: ETFE, length of wire: 500 mm (± 10mm)
Technical specifications
| Version | temperature sensor | |
| Function | temperature measurement | |
| Shell size | 25 mm | |
| Accuracy | ±3 % | |
| max. operating temperature | 170 °C | |
| measurement range | -10 to 170 °C | |
| min. operating temperature | -40 °C | |
| Assembly | Wire leads |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90318080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
