2013188 | Microtherm

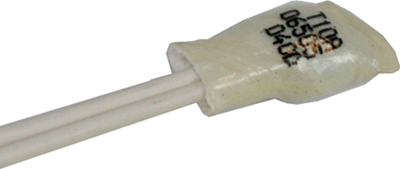

Thermal switch, type Microtherm T10.

With molded shrinking cap; Rated current at 250 VAC: 2.5 A. maximum fault current on 250 VAC: 10 A. Useful life at rated current: 10000 switching cycles. Contact resistance: max. 50 mohm. High voltage strength: 2.0 kV. Connection: stranded wire, white. Conductor cross-section: 0.24 mm² (AWG 24). Length: 100 (±10) mm. Certifications: ENEC, VDE, UL, cUL.

With NC contact, type T10A.

Type: +90 °C ±5.0 K

Features

• Small dimensions
• High power rating
• No vibration noise

Applications

• Motors
• Transformers
• Electronics, sensors
• Coils
