MIKROE-1686 | MikroElektronika

TFT Proto 5in MIKROE-1686

Order No.: 74S6780
EAN: 8606015075969
MPN:
MIKROE-1686
TFT Proto 5in
Series: DISP
MikroElektronika
MIKROE-1686 MikroElektronika Display Kits
Image may differ
Unit Price (€ / pc.)
110.075 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
110.08 € *
Price list
Quantity
Price per unit*
1 pcs.
110.075 €
3 pcs.
104.839 €
*incl. VAT plus shipping costs
**Subject to prior sale

TFT Proto 5", MIKROE-1686, MikroElektronika

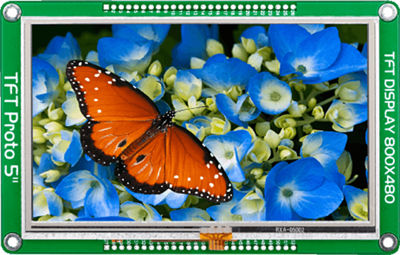

TFT Proto 5" carries a 800x480 HT050AWV40T TFT screen covered with a 4-wire resistive touchscreen panel. To drive the 262k-color display, there's an SSD1963 graphic controller with a 8/9/16/24-bit MCU interface that includes a deep-sleep power saving mode (accessed through the GPIO0 pin on the side of the board). The touchpanel is driven by an advanced STMPE811 controller. The board is lined with two rows of 26 pins for interfacing it with your MCU. TFT Proto 5" uses a 3.3V power supply only.

Technical specifications
screen diagonal 5"
Logistics
Country of origin RS
Customs tariff number 85312040
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
