001-1-008-3-A1STH-XT0 | MPE-GARRY
IC socket, 8 pole, pitch 2.54 mm (7.62 mm), copper alloy, tin plated for DIL-IC, 001-1-008-3-A1STH-XT0
Unit Price (€ / pc.)
2.1896 € *
Available: 610 pcs.
Leadtime: 4 Weeks **
Total Price:
21.90 € *
Price list
Quantity
Price per unit*
10 pcs.
2.1896 €
20 pcs.
2.0587 €
50 pcs.
1.9159 €
100 pcs.
1.7850 €
150 pcs.
1.7017 €
*incl. VAT plus shipping costs
**Subject to prior sale

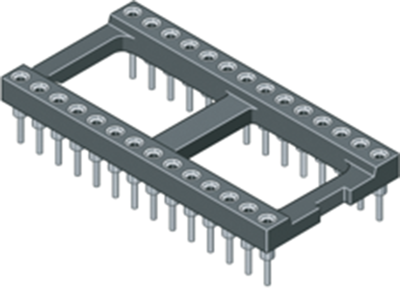

Flat IC precision sockets, type MPE-GARRY Serie 001.
Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.
With tinned solder pins, type MP STG A.

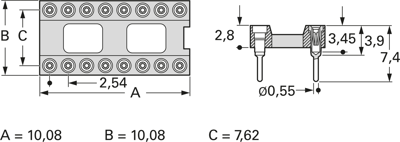

Technical attributes (number of poles, dimensions): 001-1-008-3-A1STH-XT0, 8-pole, A 10.08, B 10.08, C 7.62 mm
Technical specifications
| Ausführung | IC-Fassung | |
| Breite | 10.08 mm | |
| Geeignet für | DIL-IC | |
| Höhe | 3.9 mm | |
| Kontaktmaterial | Kupferlegierung, verzinnt | |
| Länge | 10.08 mm | |
| Material | Thermoplast | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung | 150 V | |
| Nennstrom | 3 A | |
| Polzahl | 8-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| MSL | MSL 1 |
| Originalverpackung | Stange mit 51 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
