001-2-024-3-B1STF-XT0 | MPE-GARRY
IC socket, 24 pole, pitch 2.54 mm (7.62 mm), copper alloy, tin plated for DIL-IC, 001-2-024-3-B1STF-XT0
Unit Price (€ / pc.)
2.2967 € *
Available: 3,507 pcs.
Leadtime: On Request **
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
34 pcs.
1.9516 €
102 pcs.
1.8445 €
255 pcs.
1.7493 €
1003 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale

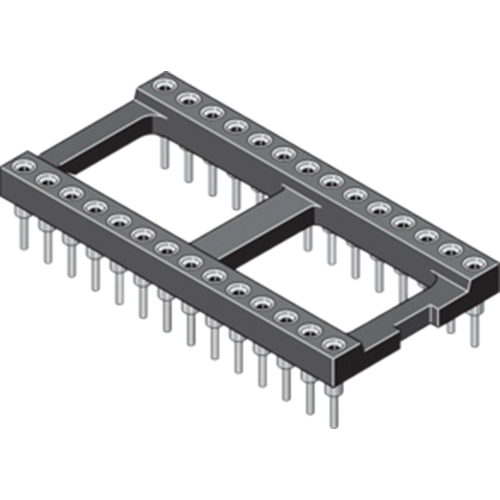

Flat IC precision sockets, type MPE-GARRY Serie 001.
Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.
With selective gold-plated female contacts and tinned solder pins, type MP STG B.

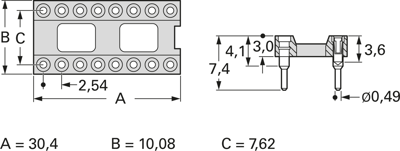

Technical attributes (number of poles, dimensions): 001-2-024-3-B1STF-XT0, 24-pole, A 30.40, B 10.08, C 7.62 mm
Technical specifications
| Version | IC socket | |
| Width | 10.1 mm | |
| Suitable for | DIL-IC | |
| Height | 3 mm | |
| Contact material | copper alloy, tin plated | |
| Length | 30.4 mm | |
| Material | thermoplastic | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Pin number | 24 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Bar with 17 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
