001-2-032-6-A1STH-XT0 | MPE-GARRY

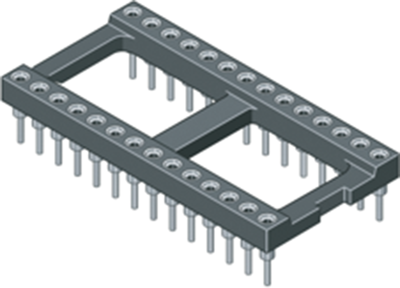

IC socket, 32 pole, pitch 2.54 mm (15.24 mm), copper alloy, tin plated for DIL-IC, 001-2-032-6-A1STH-XT0
Unit Price (€ / pc.)
4.8790 € *
Available: 59 pcs.
Leadtime: 2 Weeks **
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8790 €
5 pcs.
4.4387 €
25 pcs.
4.2126 €
75 pcs.
4.0103 €
150 pcs.
3.8675 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat IC precision sockets, type MPE-GARRY Serie 001.
Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.
With tinned solder pins, type MP STG A.

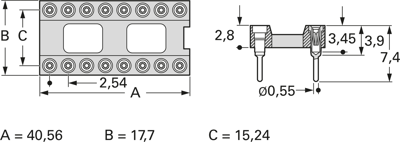

Technical attributes (number of poles, dimensions): 001-2-032-6-A1STH-XT0, 32-pole, A 40.56, B 17.70, C 15.24 mm
Technical specifications
| Version | IC socket | |
| Width | 17.7 mm | |
| Suitable for | DIL-IC | |
| Height | 2.8 mm | |
| Contact material | copper alloy, tin plated | |
| Length | 40.56 mm | |
| Material | thermoplastic | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Pin number | 32 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
