001-3-016-3-B1STH-XT0 | MPE-GARRY
IC sockets with capacitor, 16 pole, pitch 2.54 mm (7.62 mm), copper alloy, gold plated for DIL-IC, 001-3-016-3-B1STH-XT0
Unit Price (€ / pc.)
3.2249 € *
Available: 98 pcs.
Leadtime: 3 Weeks **
Total Price:
6.45 € *
Price list
Quantity
Price per unit*
2 pcs.
3.2249 €
10 pcs.
2.9036 €
50 pcs.
2.6656 €
250 pcs.
2.5347 €
500 pcs.
2.4276 €
*incl. VAT plus shipping costs
**Subject to prior sale

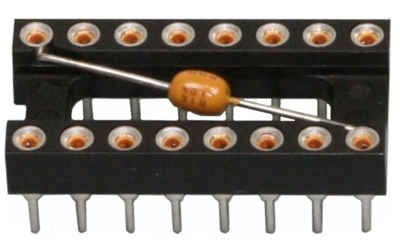

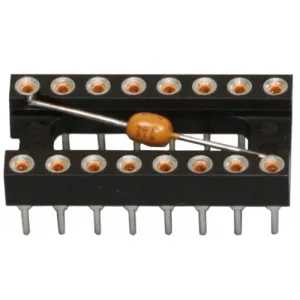

IC sockets with capacitor, type MPE-GARRY MPQ.
With multilayer ceramic capacitor (0.1 µF); Rated voltage: 100 VRMS/150 VDC. Rated current: 1.0 A. Insulating body: thermoplastic to UL 94 V-0. Contacts: brass/beryllium copper gold-plated. Operating temperatures: –55 to +125 °C.

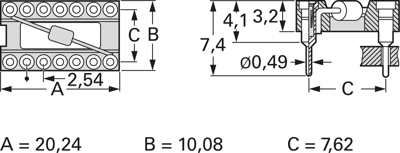

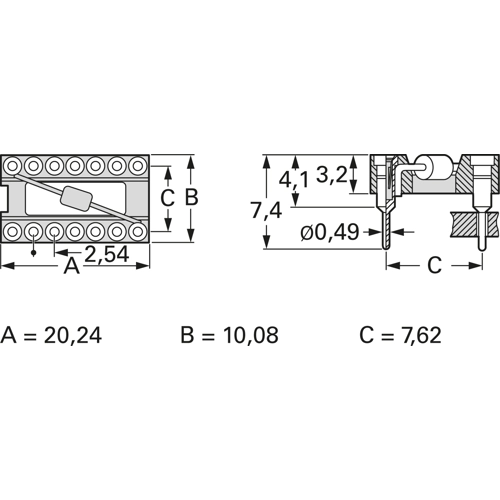

Technical attributes (number of poles, dimensions): 001-3-016-3-B1STH-XT0, 16-pole, A 20.24, B 10.08, C 7.62 mm
Technical specifications
| Ausführung | IC-Fassungen mit Kondensator | |
| Breite | 10.1 mm | |
| Geeignet für | DIL-IC | |
| Höhe | 3.2 mm | |
| Kontaktmaterial | Kupferlegierung, vergoldet | |
| Länge | 20.3 mm | |
| Material | Thermoplast | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung | 150 V | |
| Nennstrom | 3 A | |
| Polzahl | 16-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Stange mit 25 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
