006-1-020-D-K1STH-XS0 | MPE-GARRY

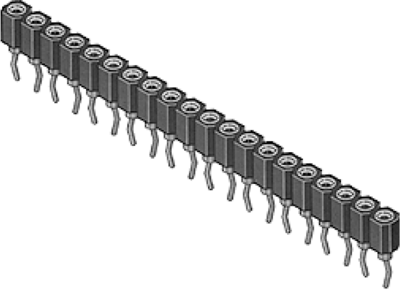

IC contact spring strip, 20 pole, pitch 2.54 mm , for DIL-IC, 006-1-020-D-K1STH-XS0
Unit Price (€ / pc.)
3.5819 € *
Available: 42 pcs.
Leadtime: On Request **
Total Price:
7.16 € *
Price list
Quantity
Price per unit*
2 pcs.
3.5819 €
10 pcs.
3.2249 €
50 pcs.
2.9274 €
250 pcs.
2.7727 €
500 pcs.
2.6299 €
*incl. VAT plus shipping costs
**Subject to prior sale
IC spring socket strips with slightly angled solder pins, type MPE-GARRY MS.
For holes from 0.78 to 0.85 mm, 2.54 mm grid, splittable; Insulating body: thermoplastic to UL 94 V-0 (self-extinguishing). Sleeve: tinned brass. Spring contact: beryllium copper, 0.75 µ gold-plating. Rated current: 1.0 A. Operating temperatures: –55 to 125 °C.
Type: 006-1-020-D-K1STH-XS0, 20-pole
Technical specifications
| Version | IC contact spring strip | |
| Suitable for | DIL-IC | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Pin number | 20 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
