006-2-064-D-B1STF-XS0 | MPE-GARRY
IC contact spring strip, 64 pole, pitch 2.54 mm , brass/copper beryllium for DIL-IC, 006-2-064-D-B1STF-XS0
Unit Price (€ / pc.)
7.0210 € *
Available: 718 pcs.
Leadtime: On Request **
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0210 €
10 pcs.
6.1761 €
100 pcs.
5.4264 €
250 pcs.
5.2003 €
1000 pcs.
4.8671 €
*incl. VAT plus shipping costs
**Subject to prior sale

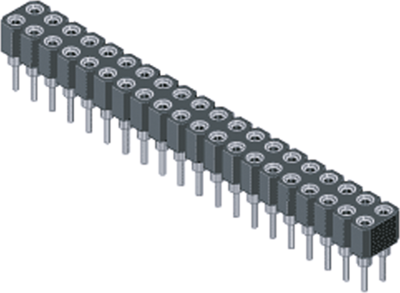

IC spring socket strips, dual-row, type MPE-GARRY MSD.
Splittable, 2 x 32-pole; Insulating body: thermoplastic to UL 94 V-0. Sleeve: tinned brass. Contact spring: beryllium copper, gold-plated. Rated current: 3.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.
Type: 006-2-064-D-B1STF-XS0, 2 x 32-pole
Technical specifications
| Version | IC contact spring strip | |
| Width | 5.08 mm | |
| Suitable for | DIL-IC | |
| Height | 2.4 mm | |
| Contact material | brass/copper beryllium | |
| Length | 7.37 mm | |
| Material | thermoplastic | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Pin number | 64 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
