008-1-064-D-D2STF-XS0 | MPE-GARRY
IC contact spring strip, 64 pole, pitch 2.54 mm , brass/copper beryllium for DIL-IC, 008-1-064-D-D2STF-XS0
Unit Price (€ / pc.)
8.3181 € *
Available: 726 pcs.
Leadtime: On Request **
Total Price:
8.32 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3181 €
10 pcs.
7.3185 €
50 pcs.
6.8306 €
250 pcs.
6.3189 €
500 pcs.
6.0690 €
*incl. VAT plus shipping costs
**Subject to prior sale

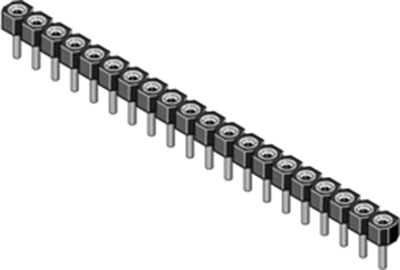

IC spring socket strips with solder pins, type MPE-GARRY MS-ULP.
Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper, gold-plated spring contact, tinned solder pins. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C. Dimensions: 2.54 mm grid.
Type: 008-1-064-D-D2STF-XS0, 64-pole

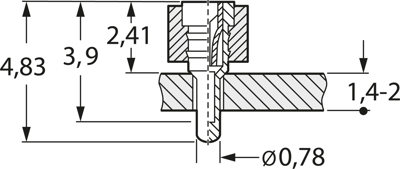

Technical specifications
| Version | IC contact spring strip | |
| Width | 2.54 mm | |
| Suitable for | DIL-IC | |
| Height | 2.41 mm | |
| Contact material | brass/copper beryllium | |
| Length | 4.83 mm | |
| Material | thermoplastic | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Pin number | 64 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Tray with 250 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
