012-2-042-6-A5STF-XS0 | MPE-GARRY

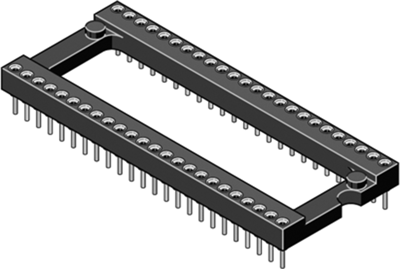

IC socket, 42 pole, pitch 1.778 mm (15.24 mm), brass/copper beryllium for DIL-IC, 012-2-042-6-A5STF-XS0
Unit Price (€ / pc.)
3.1178 € *
Available: 377 pcs.
Leadtime: On Request **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
25 pcs.
2.8322 €
50 pcs.
2.6775 €
100 pcs.
2.5466 €
250 pcs.
2.5228 €
*incl. VAT plus shipping costs
**Subject to prior sale
IC sockets, 1.778 mm grid, type MPE-GARRY MP-SHRINK.
Open version; Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper, tinned sleeve. Spring: gold-plated. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

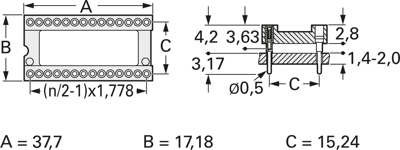

Technical attributes (number of poles, dimensions): 012-2-042-6-A5STF-XS0, 42-pole, A 37.70, B 17.18, C 15.24
Technical specifications
| Ausführung | IC-Fassung | |
| Breite | 17.18 mm | |
| Geeignet für | DIL-IC | |
| Höhe | 2.8 mm | |
| Kontaktmaterial | Messing/Kupferberyllium | |
| Länge | 7.7 mm | |
| Material | Thermoplast | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung | 150 V | |
| Nennstrom | 1 A | |
| Polzahl | 42-polig | |
| Rastermaß | 1.778 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Stange mit 13 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
