034-1-032-D-M3T-XS0 | MPE-GARRY

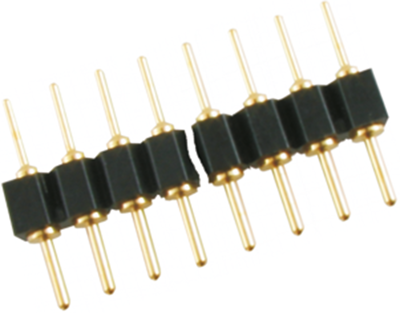

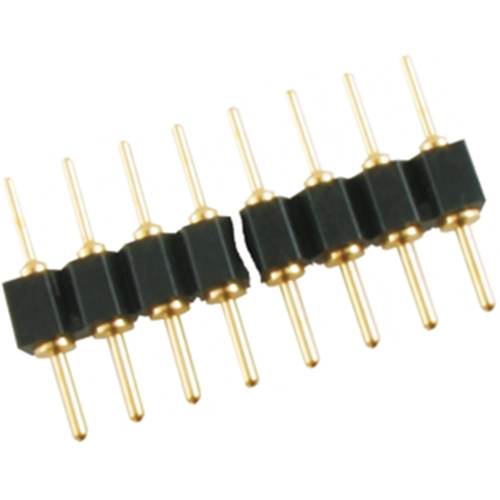

IC plug-in adapter strips with solder pins on both sides Ø 0.65 mm, 32 pole, pitch 2.54 mm , brass, tin-plated, 034-1-032-D-M3T-XS0
Unit Price (€ / pc.)
5.2717 € *
Available: 381 pcs.
Leadtime: 3 Weeks **
Total Price:
5.27 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2717 €
50 pcs.
3.9032 €
100 pcs.
3.4034 €
250 pcs.
2.9512 €
500 pcs.
2.6894 €
*incl. VAT plus shipping costs
**Subject to prior sale
IC socket strips with solder pin plugs on both sides, type MPE-GARRY MS 32.
32-pole, splittable; Insulating body: thermoplastic to UL 94 V-0. Contact material: brass. Rated current: 3.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –40 to +150 °C.
Technical attributes (type, finish): 034-1-032-D-M3T-XS0, tinned
Technical specifications

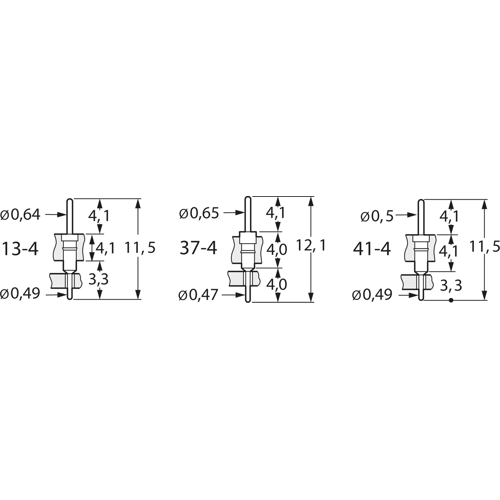

| Version | IC plug-in adapter strips with solder pins on both sides Ø 0.65 mm | |
| Width | 2.54 mm | |
| Height | 12.1 mm | |
| Contact material | brass, tin-plated | |
| Material | thermoplastic | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Pin number | 32 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
