MP-ULP 16.3 SGG 8U | MPE-GARRY

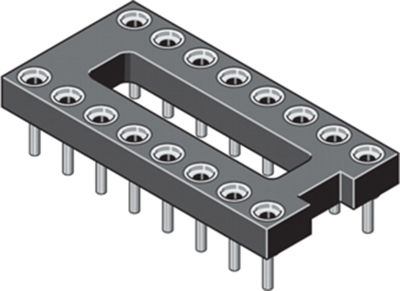

IC socket, 16 pole, pitch 2.54 mm (7.62 mm), brass/copper beryllium for DIL-IC, MP-ULP 16.3 SGG 8U
Unit Price (€ / pc.)
2.6656 € *
Available: 0 pcs.
Leadtime: On Request **
Flat IC precision sockets, type MPE-GARRY Serie 004.
Insulating body: Thermoplastic to UL 94 V-0. Contact material: copper alloy/beryllium copper, 0.75 µ gold-plating. Rated current: 1.0 A. Rated voltage: 150 VRMS/VDC. Operating temperatures: –55 to +125 °C.
With gold-plated solder pin contacts.

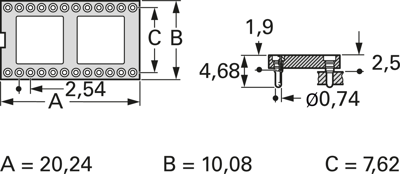

Technical attributes (number of poles, dimensions): 004-1-016-3-D1SFH-XT0, 16-pole, A 20.24, B 10.08, C 7.62 mm
Technical specifications
| Version | IC socket | |
| Width | 10.08 mm | |
| Suitable for | DIL-IC | |
| Height | 4.83 mm | |
| Contact material | brass/copper beryllium | |
| Length | 20.24 mm | |
| Material | thermoplastic | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Pin number | 16 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Bar with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
