MP-ULP 16.3 STG 8U | MPE-GARRY

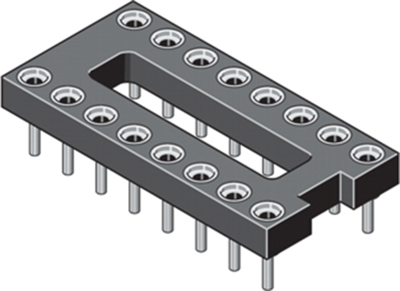

IC socket, 16 pole, pitch 2.54 mm (7.62 mm), brass/copper beryllium for DIL-IC, MP-ULP 16.3 STG 8U
Unit Price (€ / pc.)
3.0702 € *
Available: 23 pcs.
Leadtime: On Request **
Total Price:
6.14 € *
Price list
Quantity
Price per unit*
2 pcs.
3.0702 €
10 pcs.
2.7608 €
50 pcs.
2.5109 €
250 pcs.
2.3800 €
500 pcs.
2.2729 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat IC precision sockets, type MPE-GARRY Serie 004.
Insulating body: Thermoplastic to UL 94 V-0. Contact material: copper alloy/beryllium copper, 0.75 µ gold-plating. Rated current: 1.0 A. Rated voltage: 150 VRMS/VDC. Operating temperatures: –55 to +125 °C.
With tinned solder pins.

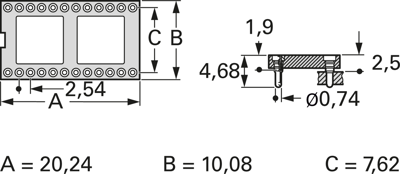

Technical attributes (number of poles, dimensions): 004-1-016-3-D1STH-XT0, 16-pole, A 20.24, B 10.08, C 7.62 mm
Technical specifications
| Ausführung | IC-Fassung | |
| Breite | 10.08 mm | |
| Geeignet für | DIL-IC | |
| Höhe | 4.83 mm | |
| Kontaktmaterial | Messing/Kupferberyllium | |
| Länge | 20.24 mm | |
| Material | Thermoplast | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung | 150 V | |
| Nennstrom | 1 A | |
| Polzahl | 16-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Stange mit 25 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
