TCGF-1,5S50X-100X100X0,5-BST | MTC

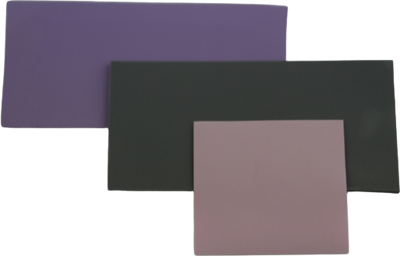

Heat conduction pad, 1.5 W/mK, silicone, (L x W) 100 x 100 mm, TCGF-1,5S50X-100X100X0,5-BST
Unit Price (€ / pc.)
34.7361 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Gap pad, TCGF-1,5S50X-100X100X0,5-BST, MTC
The TCGF-1,5S50X-100X100X0,5-BST is a thermally conductive gap pad that offers excellent thermal properties, the ability to even out small, medium, big gaps, tolerances between the component (hot spot) and the cooling device.
Features
- Excellent conformability
- Easy installation and handling
- Very good thermal properties
Technical specifications
| Breite | 100 mm | |
| Dicke | 0.5 mm | |
| Länge | 100 mm | |
| Material | Silikon | |
| max. Temperatur | 200 °C | |
| min. Temperatur | -40 °C | |
| Wärmeleitfähigkeit | 1,5 W/mk |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 39209928 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
