BU-4062-C-24-2 | Mueller Electric

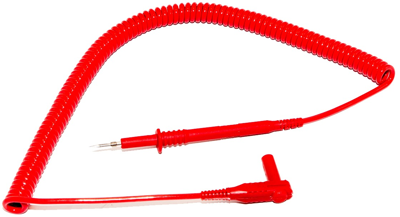

Measuring lead with (4 mm banana plug, angled) to (test probe, straight), 610 mm, red, PVC, BU-4062-C-24-2
Order No.: 86F0413
EAN: 4099891640644
MPN:
BU-4062-C-24-2
Unit Price (€ / pc.)
31.9277 € *
Available: 4 pcs.
Leadtime: On Request **
Total Price:
31.93 € *
Price list
Quantity
Price per unit*
1 pcs.
31.9277 €
5 pcs.
30.0118 €
15 pcs.
28.8575 €
50 pcs.
27.5842 €
150 pcs.
26.4299 €
*incl. VAT plus shipping costs
**Subject to prior sale
Threaded test probe, BU-4062-C-24-2, Mueller
Standard 4mm shrouded banana plug to test probe with 8‐32 thread. Banana plug is Nickel plated beryillium copper and brass. Wire is 18 coiled cord with PVC jacket.
Features
- Stretches to 2.7 m
- Hands free testing to 3000V
- RoHS compliant
Technical specifications
| Connection (1) | 4 mm banana plug, angled | |
| Connection (2) | test probe, straight | |
| Rated Voltage | 3000 V | |
| Rated current | 20 A | |
| Touch safe | Yes | |
| Colour | red | |
| Cable length | 610 mm | |
| contact surface | nickel-plated | |
| Material | PVC | |
| Stackable | No |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
