DELTA-BOX 1130 | Multi-Box

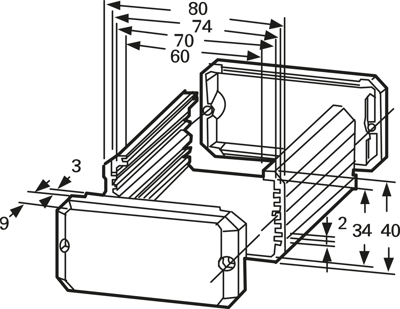

Die-cast aluminum enclosure, (L x W x H) 134 x 106 x 50 mm, black (RAL 9005), IP43, DELTA-BOX 1130
Unit Price (€ / pc.)
31.2851 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
31.29 € *
Price list
Quantity
Price per unit*
1 pcs.
31.2851 €
5 pcs.
29.4049 €
15 pcs.
28.2863 €
50 pcs.
27.0249 €
150 pcs.
25.9063 €
*incl. VAT plus shipping costs
**Subject to prior sale

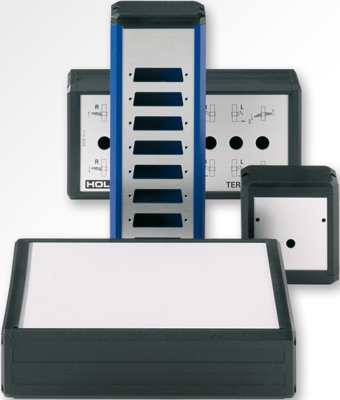

Aluminum enclosure, DELTA-BOX 1130, Multi-Box
Delta-Box-Enclosure is made of aluminium profile and unite a compact and nicely shaped design with extremely good stability. Groove guides in the base allow convenient assembly of PCBs in European card format or other electronic components. The installation of a battery compartment MB 92 is possible in the end cap. The aluminium front plates are 2 mm thick and silver anodised. The end caps are made of impact-proof ABS.
Technical specifications
| Width | 106 mm | |
| Colour | schwarz | |
| Height | 50 mm | |
| Length | 134 mm | |
| Material | Aluminium-Druckguss | |
| RAL number | 9005 | |
| Degree of protection (IP) | IP43 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 76169910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
