DELTA-BOX 180 | Multi-Box
Die-cast aluminum enclosure, (L x W x H) 184 x 80 x 40 mm, black (RAL 9005), IP43, DELTA-BOX 180
Unit Price (€ / pc.)
30.0356 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
30.04 € *
Price list
Quantity
Price per unit*
1 pcs.
30.0356 €
5 pcs.
28.2268 €
15 pcs.
27.1558 €
50 pcs.
25.9539 €
150 pcs.
24.8710 €
*incl. VAT plus shipping costs
**Subject to prior sale

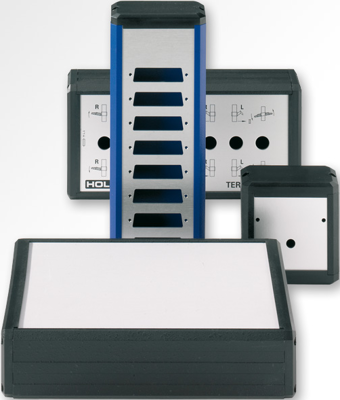

Aluminum enclosure, DELTA-BOX 180, Multi-Box

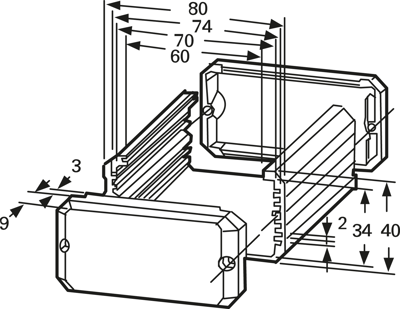

Delta-Box-Enclosure is made of aluminium profile and unite a compact and nicely shaped design with extremely good stability. Groove guides in the base allow convenient assembly of PCBs in European card format or other electronic components. The installation of a battery compartment MB 92 is possible in the end cap. The aluminium front plates are 2 mm thick and silver anodised. The end caps are made of impact-proof ABS.
Technical specifications
| Width | 80 mm | |
| Colour | black | |
| Height | 40 mm | |
| Length | 184 mm | |
| Material | die-cast aluminum | |
| RAL number | 9005 | |
| Degree of protection (IP) | IP43 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 76169910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
