83512054 | murrplastik
Unit Price (€ / pc.)
14.756 € *
Available: 0 pcs.
Leadtime: 1 Week **

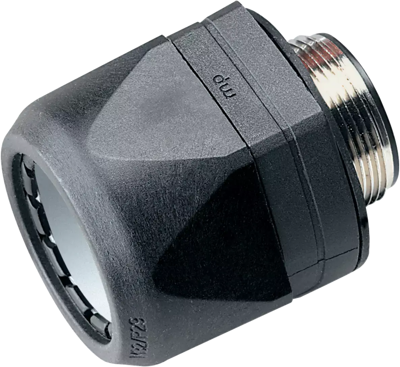

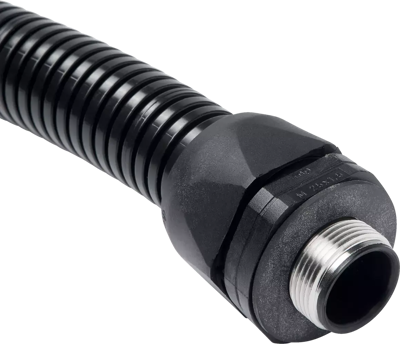

Conduit fitting, 83512054, murrplastik
The VG conduit fitting is made of specially modified polyamide 6, thermoplastic elastomer, and nickel-plated brass. The material is halogen-, phosphor-, and cadmium-free.
Features
- Quick assembly, insert conduit, screw upper part tight, done
- No parts can get lost, delivered completely assembled
- Resistant to vibration due to lockable cap nut
- Clamping along entire circumference, ensuring maximum tensile strength
- High level of tightness at IP 68/69K to 6 bar and without any add-on components to EN 60529
Technical specifications
| Colour | schwarz | |
| Thread size | NPT 3/4" | |
| Length | 50 mm | |
| Material | PA | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68 (6bar) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
