83162276 | murrplastik

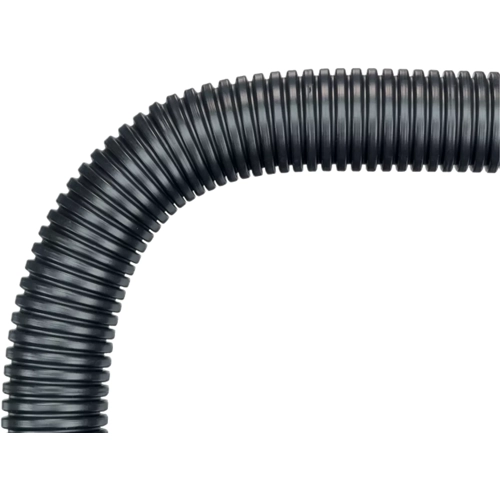

Protective hose, inside Ø 56.3 mm, outside Ø 70 mm, BR 160 mm, PA, black, 83162276
Unit Price (€ / mtr.)
32.8678 € *
Available: 0 mtr.
Leadtime: 1 Week **
Cable protective conduit, 83162276, murrplastik
The EW-PAB cable protection conduit is made of specially modified polyamide 6. The material is halogen, phosphor, and cadmium-free. The EW-PAB cable protection conduit features excellent crush resistance, self-extinguishes extremely well, and produces very low levels of smoke gas.
Applications
- Building technologies
- Mechanical engineering
- Plant engineering
Technical specifications
| Outer diameter | 70 mm | |
| Bending radius | 160 mm | |
| Colour | schwarz | |
| Inner diameter | 56.3 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Nominal width | 56 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
