83164254 | murrplastik
Protective hose, inside Ø 10 mm, outside Ø 16.2 mm, BR 100 mm, PA, black, 83164254
Order No.: 47P0427
EAN: 4045005002471
MPN:
83164254
EWT-PA M16/P11 SCHWARZ
Series: EWT-PA split-flex
Unit Price (€ / mtr.)
4.6172 € *
Available: 0 mtr.
Leadtime: 1 Week **

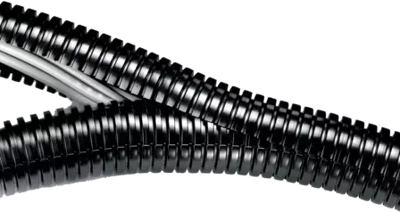

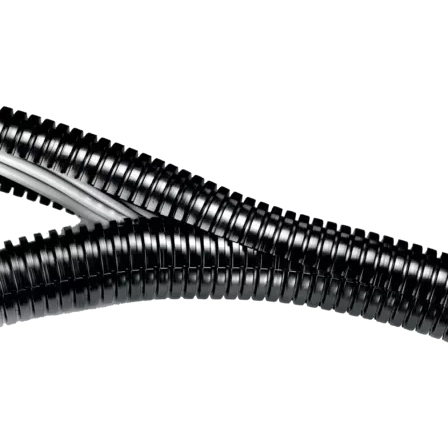

Cable protection conduit, 83164254, murrplastik
The cable protection conduit is made of specially modified polyamide 6. The material is halogen-, phosphor-, and cadmium-free. The conduit is suitable for static applications involving light to medium mechanical loads.
Features
- Cable protection conduits can be opened and closed at any time
- Mounting of pre-assembled cables
- Retrofitting or repair in mechanical and plant engineering
Technical specifications
| Outer diameter | 16.2 mm | |
| Bending radius | 100 mm | |
| Colour | schwarz | |
| Inner diameter | 10 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 12 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
