83181266 | murrplastik
Protective hose, inside Ø 35.5 mm, outside Ø 42.5 mm, BR 81 mm, PA, black, 83181266
Unit Price (€ / mtr.)
14.9702 € *
Available: 0 mtr.
Leadtime: 1 Week **

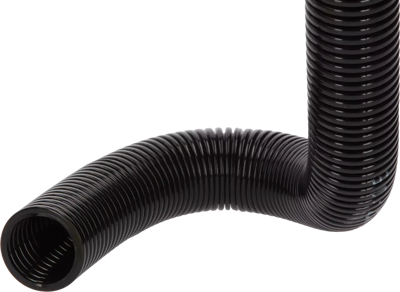

Cable protection conduit, 83181266, murrplastik
The cable protection conduit is made of specially modified polyamide 12. The material is halogen-, phosphor-, and cadmium-free. The conduit is suitable for dynamic applications involving medium to high mechanical loads. The EW-PRF cable protection conduit is used both in robotics engineering and in the aviation industry.
Features
- High flexibility
- Excellent impact strength
- Excellent self-extinguishing properties
- Very low levels of smoke gas
Technical specifications
| Outer diameter | 42.5 mm | |
| Bending radius | 81 mm | |
| Colour | schwarz | |
| Inner diameter | 35.5 mm | |
| Material | PA | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 36 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
