83181620 | murrplastik
Protective hose, inside Ø 21.8 mm, outside Ø 28.3 mm, BR 49 mm, PA, gray, 83181620
Unit Price (€ / mtr.)
7.5327 € *
Available: 0 mtr.
Leadtime: 1 Week **

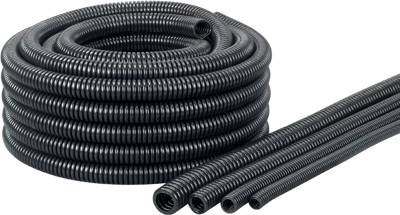

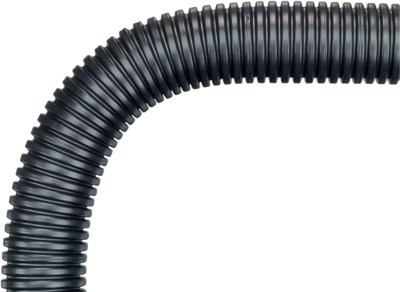

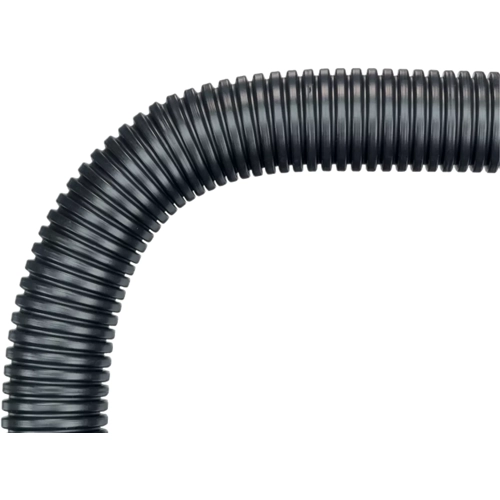

Cable protective conduit, 83181620, murrplastik
The EW-PAE cable protection conduit is made of specially modified polyamide 12. The material is halogen, phosphor, and cadmium-free. The EW-PAE cable protection conduit is characterized by excellent flexibility, flexural fatigue strength, and good crush resistance. It is designed for extremely dynamic applications involving medium mechanical loads.
Applications
- Robotics
- Handling systems
- In cable drag chains
Technical specifications
| Outer diameter | 28.3 mm | |
| Bending radius | 49 mm | |
| Colour | grau | |
| Inner diameter | 21.8 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 23 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
