00 6119 04 | Neosid

Suppressor choke, SMD, 22 µH, 1.8 A, 00 6119 04

Order No.: 74D4208
EAN: 4099889011562
MPN:
00 6119 04
Series: Ms 85
Neosid

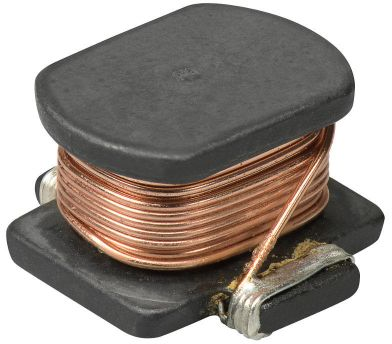

00 6119 04 Neosid Fixed Inductors Image 1
00 6119 04 Neosid Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version suppressor choke
Inductance 22 µH
DC current 1.8 A
Tolerance ±10 %
DC resistance 110 mΩ
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.2019 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
1.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
1.2019 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD power inductor, type Neosid Ms 85.

For reflow and vapor-phase soldering, suitable for automatic assembly, low DC resistance
Technical specifications
Version suppressor choke
Design SMD
Width 6 mm
DC current 1.8 A
DC resistance 110 mΩ
Height 5.5 mm
Inductance 22 µH
Length 8 mm
Measuring frequency 15 MHz
Saturation current 1.8 A
Tolerance ±10 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85045000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
