00 6122 24 | Neosid
Suppressor choke, radial, 1 mH, 140 mA, 00 6122 24
Unit Price (€ / pc.)
1.8564 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8564 €
10 pcs.
1.1543 €
50 pcs.
1.0234 €
250 pcs.
0.8806 €
1000 pcs.
0.7735 €
*incl. VAT plus shipping costs
**Subject to prior sale
Suppressor inductor, 00 6122 24, NEOSID
The 00 6122 24 is a fixed value choke inductor with or without a ferromagnetic core, used to block alternating current (AC) in a circuit by limiting the rate of change over a specified frequency range, while allowing passage of lower frequency AC or direct current (DC).
Features
- Solderability as per DIN IEC 68-2-20 Ta: 235°C, 5 sec.
Applications
- Decoupling of high and low frequency circuits
- Telecommunications
- Video equipment
- Electronic data processing systems

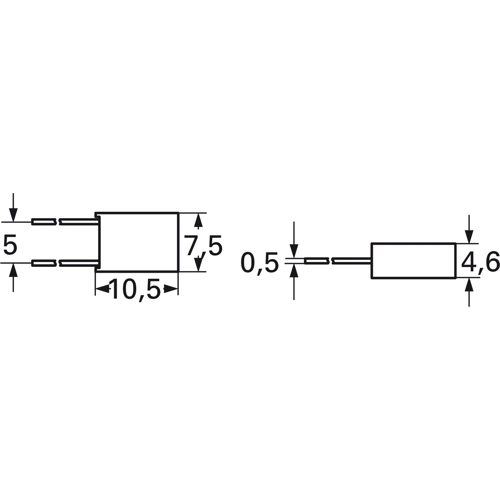

Technical specifications
| Ausführung | Entstördrossel | |
| Bauform | radial | |
| Breite | 7.5 mm | |
| Gleichstrom | 140 mA | |
| Gleichstromwiderstand | 14 Ω | |
| Gütefaktor Q | Q 65 | |
| Höhe | 4.6 mm | |
| Induktivität | 1 mH | |
| Länge | 10.5 mm | |
| Messfrequenz | 500 kHz | |
| Toleranz | ±5 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85045000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
