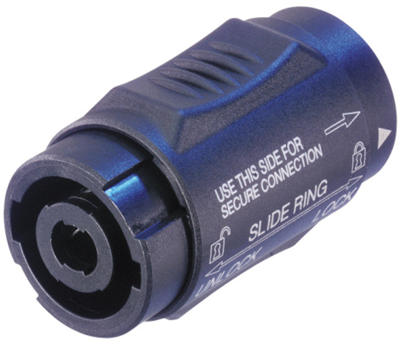

NL4MMX | Neutrik
Speaker connecting coupling, Lautsprecheradapter, 4-polig, 250 V
Unit Price (€ / pc.)
8.8298 € *
Available: 5 pcs.
Leadtime: 2 Weeks **
Total Price:
8.83 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8298 €
10 pcs.
8.1277 €
50 pcs.
7.3899 €
100 pcs.
6.6521 €
*incl. VAT plus shipping costs
**Subject to prior sale
Speaker connectors, series Speakon, type NEUTRIK NL.
Very rugged connector with reliable interlocking system, for quick and easy mounting, collet chuck strain relief for reliable cable clamping; Rated voltage: 250 VAC. Dielectric strength: 4.0 kVDC. Contact resistance: < 3.0 mohm, Contact material: brass, 4.0 µm silver plating. Housing: polyamide. Connection type: solderable screw terminals for stranded wire cables. Operating temperatures: –30 to +80 °C. Certifications: UL, CSA.
Speaker connection jacks, type NL.
Interconnects two NL2/4FCs as extension cord; Rated current per contact: Rated current per contact: 20 A.
Type: NL4MMX, 4–pole
Technical specifications
| Connector | speakON-Buchse 4-polig | |
| Connector (exit) | speakON-Buchse 4-polig | |
| Colour | silber |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
