NBNC75BDD6 | Neutrik
BNC plug 75 Ω, Belden 1855A, CommScope 7538, crimp connection, straight, NBNC75BDD6
Unit Price (€ / pc.)
4.5339 € *
Available: 70 pcs.
Leadtime: 5 Weeks **
Total Price:
4.53 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5339 €
10 pcs.
4.1769 €
50 pcs.
3.7961 €
100 pcs.
3.4153 €
*incl. VAT plus shipping costs
**Subject to prior sale

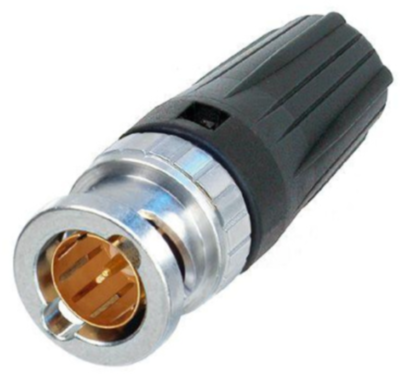

HD - BNC cable connector, NBNC75BDD6, Neutrik
The NBNC75BDD6 is a rearTWIST HD BNC cable connector that offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Features
- Snug-fit center pin insert provides tactile feedback
- Excellent cable protection and retention
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
- Precise Swiss machined brass parts for outstanding durability
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 75 Ω | |
| Cable Group | Belden 1855A, CommScope 7538 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Connector | BNC |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
