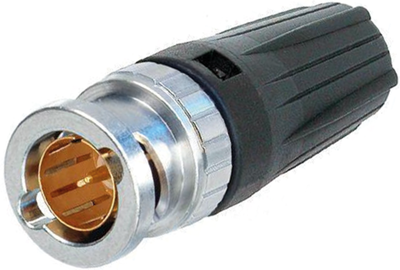

NBNC75BLP7 | Neutrik

BNC connectors for video signals, type NEUTRIK NBNC../NBTC.

Precision lathed connectors, 75 ohm, can be used up to 3.0 GHz for digital and analog video signal transmission, VSWR max. 1.22 (3.0 GHz); Rated voltage: 500 VAC (type NBTC 75 BLI 4 = 250 VAC), gold-plated contacts, pin and sleeve crimped, e.g., with crimp tool HX-R-BNC with DIE-R-BNC-PG/DIE-R-BNC insert, surface hardened with optalloy, bayonet lock with included cable bushing. Useful life: min. 1000 insertion/removal cycles. Operating temperatures: –30 to +85 °C.

Technical attributes (type, for cable type): NBNC 75 BLP 7, RG 59/0.6–3.7/0.6L–3.7
