NBNC75BLP9X | Neutrik

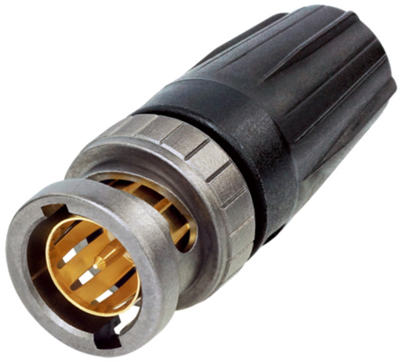

BNC plug 75 Ω, Belden 1505A, crimp connection, straight, NBNC75BLP9X

Order No.: 78F1754
EAN: 4099889830941
MPN:
NBNC75BLP9X
Series: BNC
Neutrik
NBNC75BLP9X Neutrik Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
3.7247 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.7247 €

UHD - BNC connector, NBNC75BLP9X, Neutrik

The NBNC75BLP9X is a rearTWIST UHD BNC connector and is specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connector features low return loss values for 4K and 8K signals.

Features

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Swiss antraloy plating
  • Improved return loss values at high frequencies
  • Proven rearTWIST technology
  • Fully compatible with conventional BNC chassis connectors
Technical specifications
Version plug
Design straight
Impedance 75 Ω
Cable Group Belden 1505A
Contact connection crimp connection
Contact material brass
Connector BNC
Logistics
Country of origin LI
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
