NBNC75BTU11X | Neutrik

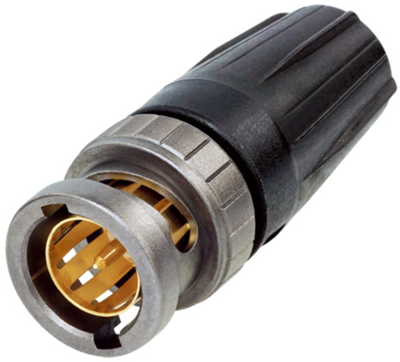

BNC plug 75 Ω, Belden 1694A, crimp connection, straight, NBNC75BTU11X
Unit Price (€ / pc.)
4.0579 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
UHD - BNC connector, NBNC75BTU11X, Neutrik
The NBNC75BTU11X is a rearTWIST UHD BNC connector and is specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connector features low return loss values for 4K and 8K signals.
Features
- Optimized contact pin and insulator design for UHD-data transmissions
- Swiss antraloy plating
- Improved return loss values at high frequencies
- Proven rearTWIST technology
- Fully compatible with conventional BNC chassis connectors
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 75 Ω | |
| Cable Group | Belden 1694A | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Connector | BNC |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
