NBTC75BNN5 | Neutrik

BNC plug 75 Ω, Draka 0.41/1.9 AF, Belden 1279R, crimp connection, straight, NBTC75BNN5

Order No.: 80F5074
EAN: 4099889832389
MPN:
NBTC75BNN5
Series: BNC
NBTC75BNN5 Neutrik Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
5.4264 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
5.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.4264 €

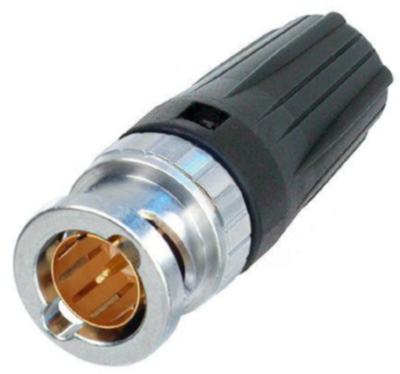

HD Tiny BNC cable connector, NBTC75BNN5, Neutrik

The NBTC75BNN5 is a rearTWIST HD Tiny BNC cable connector and is optimized for small cable diameters. The additional leading ferrule eases the critical assembly of multicore or tiny cables. This product offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Features

  • Optimized assembly for mutlicore or tiny cables
  • Snug-fit center pin insert provides tactile feedback
  • Excellent cable protection and retention
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies
  • Precise Swiss machined brass parts for outstanding durability
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Technical specifications
Impedance 75 Ω
Connector BNC
Cable Group Draka 0.41/1.9 AF, Belden 1279R
Design gerade
Contact material Messing
Contact connection Crimpanschluss
Version Stecker
Logistics
Country of origin LI
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
