NAC3MX-W-TOP-L | Neutrik

Cable plug, 3 pole, screw connection, 2.5 mm², black, NAC3MX-W-TOP-L

Order No.: 41F489
EAN: 7613187013942
MPN:
NAC3MX-W-TOP-L

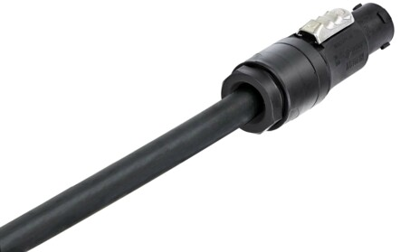

NAC3MX-W-TOP-L Neutrik Device Connectors Image 1

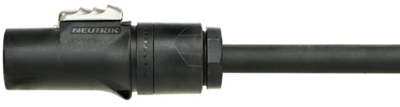

NAC3MX-W-TOP-L Neutrik Device Connectors Image 2

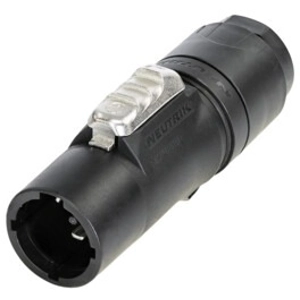

NAC3MX-W-TOP-L Neutrik Device Connectors Image 3
NAC3MX-W-TOP-L Neutrik Device Connectors Image 4
Image may differ
Unit Price (€ / pc.)
7.6041 € *
Available: 1 pcs.
Leadtime: 5 Weeks **
Total Price:
7.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.6041 €

Cable connector, NAC3MX-W-TOP-L, NEUTRIK

Locking cable connector​ for big power cords with outer diameters from 10-16 mm. NAC3MX-W-TOP-L is a lockable single phase connector with breaking capacity (CBC) for outdoor applications.

Features

  • Heavy duty sealed power connector for harsh and demanding environment
  • Extremely robust and reliable cable retention
  • TOP True Outdoor Protection
  • IEC EN 60320-1 and UL 60320-1 certified
Technical specifications
Anschluss Schraubanschluss
Ausführung Stecker
Bauform gerade
Farbe schwarz
Kabeldurchmesser 10 bis 16 mm
Leiterquerschnitt 2,5 mm²
Nennspannung IEC 250 V
Nennspannung UL/CSA 250 V
Nennstrom IEC 16 A
Nennstrom UL/CSA 20 A
Netzfilter vorhanden No
Netzschalter beleuchtet No
Netzschalter vorhanden No
Polzahl 3-polig
Sicherungshalter vorhanden No
Stifttemperatur 80 °C
Verriegelung Ja
Logistics
Ursprungsland GB
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
