NO2-4FDW-A | Neutrik

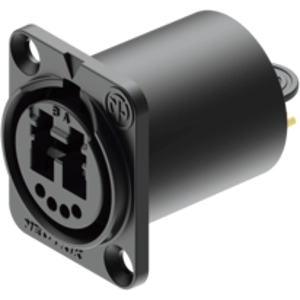

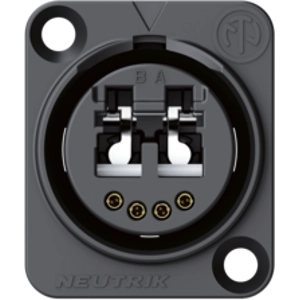

LC duplex panel socket, multimode, ceramic, black, NO2-4FDW-A
Unit Price (€ / pc.)
87.7387 € *
Available: 11 pcs.
Next delivery: 25 pcs. on 2025-01-08
Leadtime: 1 Week **
Total Price:
87.74 € *
Price list
Quantity
Price per unit*
1 pcs.
87.7387 €
5 pcs.
82.4789 €
15 pcs.
79.3135 €
50 pcs.
75.8030 €
*incl. VAT plus shipping costs
**Subject to prior sale
Panel jacks, IP 65, series opticalCON, type NEUTRIK NO2-4FDW-A.
With black chrome coating, 4 solder contacts and 1 LC-Duplex in/out connection. Panel mount from the front; Color code: multimode - black, single mode PC - blue, single mode APC - green. Contact finish: 0.2 µm Au on 2.0 µm Ni primer. Contact resistance: max. 7.0 mohm. Dielectric strength: 1500 VDC. Rated current: 3.0 A. Rated voltage: 50 V. Protection class: IP 65. Operating temperatures: –30 to +80 °C.
Type: NO2-4FDW-A, panel jack
Technical specifications
| Connection | solder connection | |
| Version | LC duplex panel socket | |
| Colour | black | |
| Chamfer type | multimode | |
| Ferrule | ceramic | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85367000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
