NP2C | Neutrik

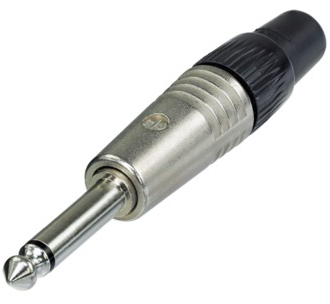

6.35 mm jack plug, 2 pole (mono), solder connection, metal, NP2C
Order No.: 39F127
EAN: 4099889855548
MPN:
NP2C
As an alternative, we recommend the following item:
6.35 mm jack plug, 2 pole (mono), solder connection, metal, NP2X
Order No.: 39F200
Manufacturer: Neutrik
per pc. 5.0813 € *
*incl. VAT plus shipping costs
Phono plugs, series C, type NEUTRIK NP.
6.35 mm, for professional applications, robust metal housing (nickel-plated) and collet strain relief for optimum cable protection; Dielectric strength: 1.0 kVDC. Rated current per contact: dependent on the mating part. Rated voltage: 50 V. Cable diameter: 4.0 to 7.0 mm. Conductor cross-section: 1.0 mm² (AWG 18). Connection type: solder terminals. Contact material: CuZn39Pb3, 2.0 µm nickel-plated. Operating temperatures: –20 to +65 °C.
Technical attributes (type, number of poles): NP2C, 2–pole
Technical specifications
| Version | plug | |
| Shell Material | metal | |
| Contact connection | solder connection | |
| contact surface | nickel-plated | |
| Assembly | cable assembly | |
| Pin Diameter | 6.35 mm | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
