NP2RX-B | Neutrik

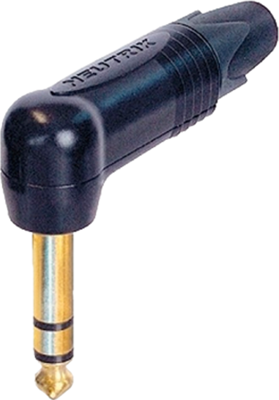

6.35 mm angle jack plug, 2 pole (mono), solder connection, metal, NP2RX-B
Unit Price (€ / pc.)
4.1055 € *
Available: 0 pcs.
Leadtime: 1 Week **
Phono plugs series X, type NEUTRIK NP.
6.35 mm, extra slim 1/4 inch version for high insertion density, for professional applications, improved collet strain relief for reliable cable retention, robust die cast housing (nickel-plated or black chrome plating); Dielectric strength: 1.0 kVDC. Rated current per contact: dependent on the mating part. Rated voltage: 50 V. Cable diameter: 4.0 to 7.0 mm. Conductor cross-section: 1.0 mm² (AWG 18). Connection type: solder terminals. Contact material: CuZn39Pb3, 0.2 µm gold-plated, black bushing. Operating temperatures: - 20 to +65 °C.
Angled.
Technical attributes (type, number of poles, contact finish): NP2RX - B, 2 - pole, gold - plated
Technical specifications
| Version | plug | |
| Colour | black | |
| Shell Material | metal | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Pin Diameter | 6.35 mm | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
